90 SERIES Hose Reel



Techniques:

Application :      oil
Hose size : 1/2in.* 50Ft/65ft
Hose Material:      steel wire
Working pressure : 2000PSI
Burst Pressure :      8700PSI
Temp. Range (F o):   ­­­-68 to180
Lead-in Hose :   1/2in. NPS Female Swivel
Reel inlet :          1/2in.NPT Female
Discharge Hose : 1/2in. male 2Ft
Weight N/G:       12.7kg/13.5kg

Rugged and dependable, 820 SERIES hose reels incorporate in steel and anti-corrosive components to which can withstand the harsh conditions in the work place! These hose reels are supplied to rewind the delivery hose, and they can be wall, overhead or vehicle mounted.



It is adaptable for delivering lubrication, air, and water to general industrial appliances such as assembly operations and air tools.

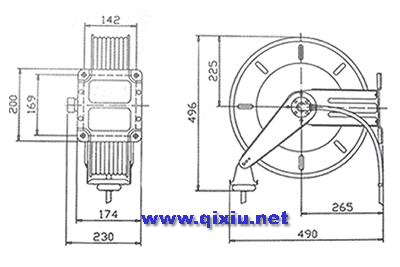

安装尺寸图
----------------------------------------------------------------------


Rugged and dependable ,90series reels incorporate heavy gauge steel and corrosion resistant components to withstand the harsh conditions in the work place! These heavy duty auto rewind metal reels are supplied complete with delivery and lead-in hose . They can be wall ,overhead or vehicle mounted

Application :                oil
Hose size :                 1/2in.* 50Ft/65ft
Hose Material:       steel wire canvas tube
Working pressure : 2000PSI
Burst Pressure :      8700PSI
Temp. Range (F o): ­­­-68 to180
Lead-in Hose :   1/2in. NPS Female Swivel
Reel inlet :          1/2in.NPT Female
Discharge Hose : 1/2in. male 2Ft
Weight N/G:       12.7kg/13.5kg

For : Lubrication, Air, water, assembly operations ,washdown, air tools, general industrial applications









安装尺寸图
----------------------------------------------------------------------
