Assemblies:

--oil drum: 25L (can control the volume of the oil automatically)

--pneumatic pump: 1:1 (inletG1/4”, outletG3/4”)

--bracket

--compressed air filter, pressure valve, ball valve and air nipple

Extended oil tray

Techniques:

Tank capacity: 20L

Hose thread: G3/4”

Lifter height: 650mm

Extended distance: 1350mm

Tray dimension: 700*250mm

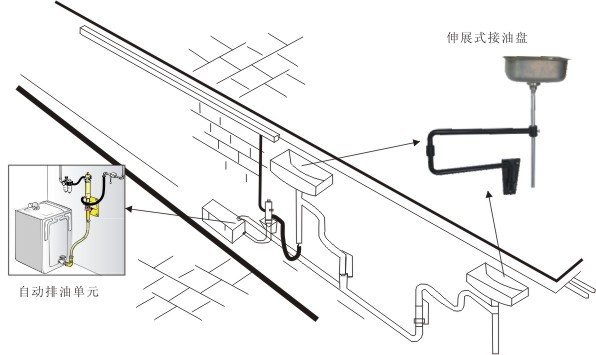

We can adjust the height of the tray through a lifter. Also there are two turning connectors mounted in the hand, it can make sure that the tray can extend to where the engine is, and can retract after working.

It can adapt to the lift way also the valley way of suction. Firstly, effect on the gravity, the waste oil (20L) will flow into the oil drum directly. For there is a switch which can control the volume of the oil, the draining pump will turn on automatically to deliver the oil to the distant oil drum when the oil comes to the rated volume.
