Techniques:

Inlet connector: G1/4

Outlet connector: G1/4

Pump ratio: 45:1

Delivery: 500-1600g/min

Hose: 4m

Air pressure: 4-9kg/ cm2

Grease pressure: 180-360 kg/ cm2

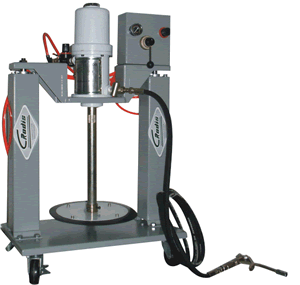

With a high viscosity pump, a grease platen, a lifter, it turned out to be a high viscosity grease suction device. Through operating the lifter, the pump & the cover will lift up and down which only need to turn on the turning valve to complete. Then it is convenient for us to change the drum immediately. Also there is a special grease platen which is different from follower plate; the grease is forced to come out from the pump.

It can apply to the centric provide for putty, mucilage, lube, and painting ink and other liquid with high viscosity.

It can supply to gas station, metallurgy, paper-manufacturing, electric power, and electron, port, and construction machinery, automobile and so on.

NOTE:

Compared with 66110, it has a dual lifter which can work more effectively.
