Appearance: black baking painting

Pressure: >=16Mpa

Hand pressure: 98N

Tightness: 24Mpa

Dimension: 246*32.8mm

Delivery: 1.8 cm3 /stoke

Packing dimension: 51*37*40.5

Features:

Unique design for dual piston, it can work more effective, stronger, and more convenient;

With a zinc alloy pump head, it can withstand a high pressure;

With a thermolysis spring, it will have a long and even pressure;

With a self-lock device, it will become safe and convenient for greasing;

With a discharge device, it makes sure that there is no bubble in the cylinder;

It is adaptable for barreled lubricant of 400cc, maximum pressure is 10000PSI(700KGS/M2).

Applications:

Ÿ          Working line for the manufacturing of miniature bearing and dynamo;

Ÿ          Spare parts of the machines

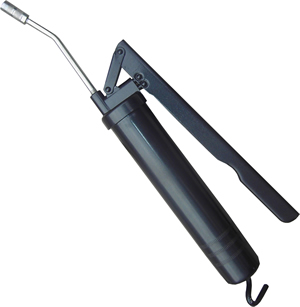

9820 is a design for industry greasing like miniature bearing, automobile and so on. It has the features of precision, effective, steady also convenient.

It is made up by measuring cylinder and controlled components.

It apply to dry grease, lube pressure is between 2Mpa and 8Mpa.
